Thursday, July 17, 2014

Putting in Fence!

Well I guess it's the week for updates!

We've had a lot of rain recently, so the fence progress has been slow, but we're getting there!

I posted a few weeks ago about pounding the metal t-posts for the aisle from the shed to the pasture.

The aisle in the distance.

After that was done we started putting in the corner post brace assemblies.  Due to the aisle, our pasture has 4 true corners (3 posts with 2 braces each) and 2 half-braces (2 posts and 1 brace each).  All of these posts must be set in cement.

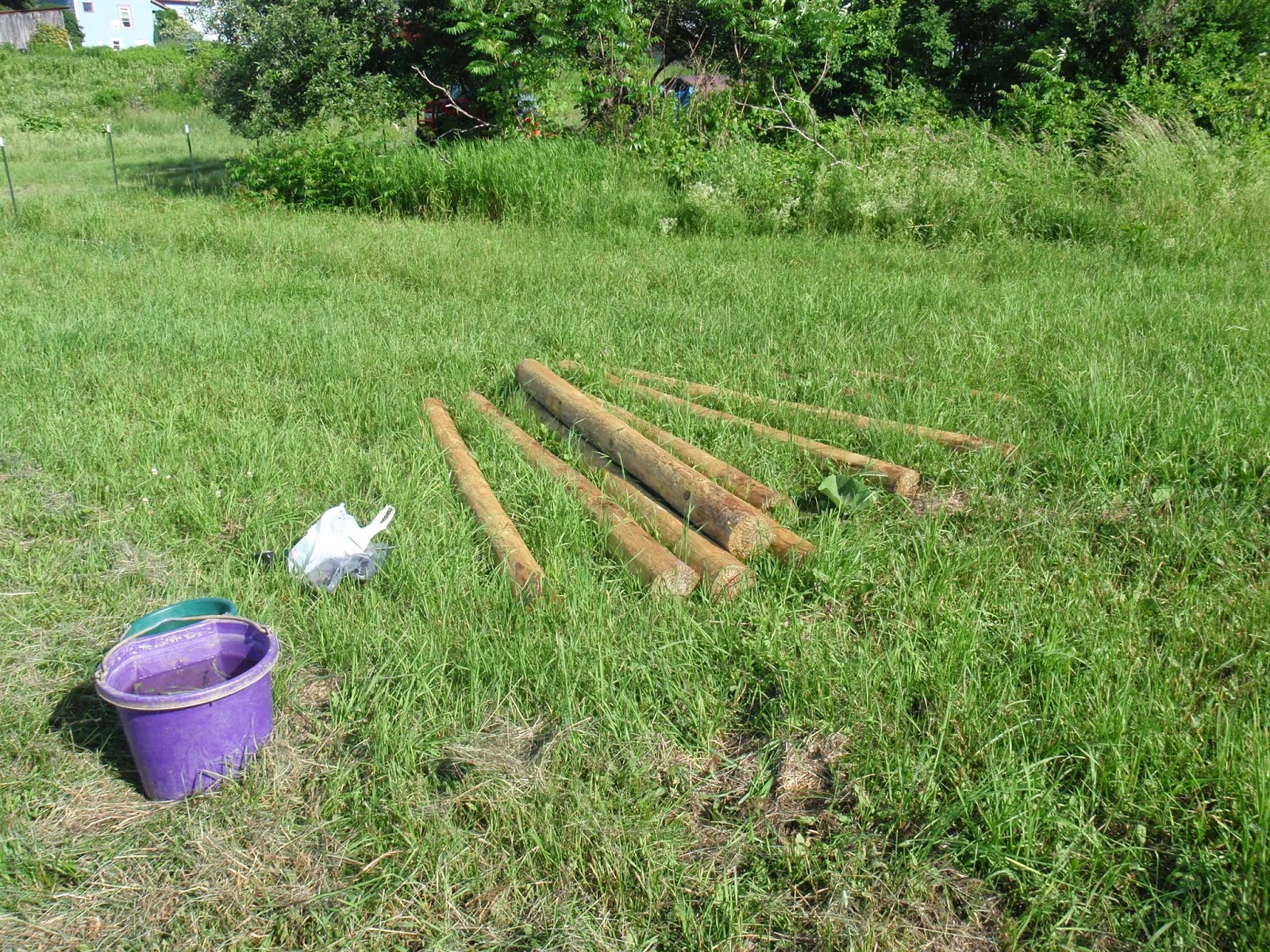

Supplies for setting corner posts.

I first marked where I wanted the corners to be (and measured each side so we wouldn't run out of fence!)

Flag where the corner post will be set.

What a beautiful pasture!

Then we started digging the holes with the auger on the PTO of the tractor.  Of course we had the same luck as last year...breaking a shear bolt on the first post!  Actually we broke 3 shear bolts in the first 4 posts, but (knock on wood!) haven't broken any since then!

First broken shear bolt!

Pulling the auger out of the hole after the shear bolt broke.

When we set the posts in concrete, we pour 40lbs of dry mix into the hole, followed by about 2-3 gallons of water.  Then it gets mixed with a t-post and allowed to settle.  The rest of the hole is filled in with dirt (and rocks).

Concrete and water in the hole.

First finished corner post!

We set the final corner post yesterday, and started on the wood line posts today.  Every 4th post will be wood, the rest are metal t-posts.  We have 5 of the 9 wood posts set, and hope the do the rest Saturday.  In the meantime I'll be busy pounding t-posts!

Drilling for the third line post (the one in the background is loose, not set!).

Drilling for the fourth line post.
